LED 025 开关式或感应式

产品名称:

LED 025 开关式或感应式

产品简介:

These parts can be ordered separately. Sets, consisting of lamp and accessories, are available on request.

详细信息

TECHNICAL DETAILS

Power consumption max. 5W
Luminosity 400Lm at 120° (1,200Lm at 360° or equivalent 95W light bulb)
Lamp type LED, angle of radiation 120
light color: daylight, color temperature: 6,000K to 7,000K
Service life 60,000h at +20°C (+68°F)
Connection 2-pole connector with snap lock
AC: max. 2.5A / 240VAC, color: white
DC: max. 2.5A / 60VDC, color: blue
Mounting magnet fixing or screw fixing (M5), clip fixing (M6)
torque 2Nm max.
Casing plastic, transparent
Dimensions see drawings
Weight 0.2kg
Operating/Storage temperature -30 to +60°C (-22 to +140°F) / -40 to +85°C (-40 to +185°F)
Operating/Storage humidty max. 90% RH (non-condensing)
Protection type/Protection class IP20 / II (double insulated), 12VDC: IP20 / III (extra-low voltage)

Mounting options:The lamps are available with magnet fixing for easy positioning in any steel cabinet or enclosure. A classic is the LED 025 with screw fixing.The clip holders exclusively designed for clip fixing of the LED 025 can be positioned anywherein the cabinet by simply screwing the holders to the cabinet wall. The lamp is snapped into the clip holders and can be turnedin both directions. With a total rotation angle of 180° it provides perfect illumination within the cabinet or enclosure.

Note:The lamp must not be used for household lighting.

Art. No. Magnet fixing Art. No. Screw fixing Art. No.Clip fixing Operating voltage Switch Approvals
02540.0-00 02540.0-01 02540.0-03 100-240VAC, 50/60Hz (min. 90VAC, max. 265VAC) on/off light switch VDE UL File No. E234324 EAC
02540.1-00 02540.1-01 02540.1-03 24-48VDC (min. 20VDC, max. 60VDC) on/off light switch VDE UL File No. E234324 EAC
02540.2-00 02540.2-01 02540.2-03 12VDC (min. 10VDC, max. 16VDC) on/off light switch VDE UL File No. E234324 EAC
02541.0-00 02541.0-01 02541.0-03 100-240VAC, 50/60Hz (min. 90VAC, max. 265VAC) PIR movement sensor2 VDE UL File No. E234324 EAC
02541.0-00 02541.1-01 02541.1-03 24-48VDC (min. 20VDC, max. 60VDC) PIR movement sensor2 VDE UL File No. E234324 EAC

¹ approx. 5 min. fixed switch-on duration

ACCESSORIES

Connectors and cables for electrical connection are not included in the delivery of the LED 025. These parts can be ordered separately. Sets, consisting of lamp and accessories, are available on request.

CONNECTION CABLE WITH FEMALE CONNECTOR AND OPEN END

Art. No. Model Length Voltage type Color Use for Approvals²
244356 connection cable 2 x 1.5mm² with female connector 2.0m AC connector: white; cable: white power input VDE
244357 connection cable 2 x AWG 15 with female connector 2.0m AC connector: white; cable: white power input VDE + UL
244360 connection cable 2 x 0.75mm² with female connector 2.0m 24-48VDC connector: blue; cable: white power input VDE
244361 connection cable 2 x AWG 15 with female connector 2.0m 24-48VDC connector: blue; cable: white power input VDE + UL
244389 connection cable 2 x 0.75mm² with female connector 2.0m 12VDC connector: blue; cable: white power input VDE
244390 connection cable 2 x AWG 15 with female connector 2.0m 12VDC connector: blue; cable: white power input VDE + UL

² applies only to the individual components (cable and connectors)

EXTENSION CABLE WITH 2 CONNECTORS FOR DAISY CHAIN CONNECTION

Art. No. Model Length Voltage type Color Use for Approvals²
244358 extension cable 2 x 1.5mm² with 2 connectors 1.0m AC connectors: white; cable: white daisy chain VDE
244359 extension cable 2 x AWG 15 with 2 connectors 1.0m AC connectors: white; cable: white daisy chain VDE + UL
244362 extension cable 2 x 1.5mm² with 2 connectors 1.0m 24-48 VDC connectors: white; cable: white daisy chain VDE
244363 extension cable 2 x AWG 15 with 2 connectors 1.0m 24-48 VDC connectors: white; cable: white daisy chain VDE + UL
244363 extension cable 2 x 1.5mm² with 2 connectors 1.0m 12VDC connectors: white; cable: white daisy chain VDE
244392 extension cable 2 x AWG 15 with 2 connectors 1.0m 12VDC connectors: white; cable: white daisy chain VDE + UL

² applies only to the individual components (cable and connectors)

FEMALE / MALE CONNECTORS

Art. No. Model Voltage type Color Use for Approvals
264057 female connector AC white power input VDE + UL
264058 male connector AC white power output VDE + UL
264059 female connector 24-48VDC blue power input VDE + UL
264060 male connector 24-48VDC blue power output VDE + UL
264065 female connector 12VDC blue power input VDE + UL
264066 male connector 12VDC blue power output VDE + UL

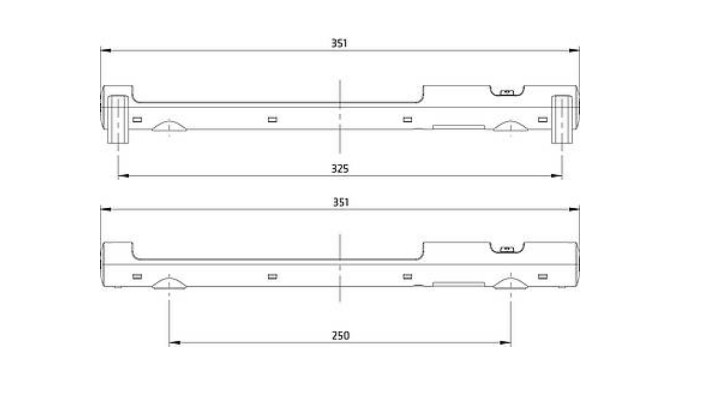

TECHNICAL DRAWING
