通气减压阀 DA 284 IP66IP68
Make cut-out Ø 40.5+0,5mm in enclosure wall for size M40 or Ø 12+0,2mm for size M12, and mount pressure compensation device with nut. Please make sure that the sealing gasket is put in place on the ou
TECHNICAL DETAILS
| Mounting | thread M40 x 1.5 or M12 x 1.5 with nut | |
| Torque | M40: 5Nm, M12: 0.5Nm | |
| Depth in enclosure | M40: approx. 16mm, M12: approx. 8mm | |
| Sealing | sealing gasket NBR | |
| Filter |
|
|
| Dimensions | M40: Ø 60 x 37mm, M12: Ø 17 x 17.5mm | |
| Fitting position | variable |
Installation
Make cut-out Ø 40.5+0,5mm in enclosure wall for size M40 or Ø 12+0,2mm for size M12, and mount pressure compensation device with nut. Please make sure that the sealing gasket is put in place on the outer side panel of the enclosure. For optimal pressure compensation we recommend to use two devices on opposite sides towards the top of the enclosure.
| Art. No | Stainless steel | Protection type | Protection type | Operating/ Storage temperature | 1 packing unit | Weight (approx.) | Approvals |
| 28400.0-00 | M40 x 1.5 | plastic, light grey | IP66 (EN 60529) / IPX9K (EN 40050-9) | -35 to +70°C (-31 to +158°F) | 2 pieces | 90g (45g/piece) | EAC |
| 28401.0-01 | M40 x 1.5 | plastic, light grey | IP66 (EN 60529) / IPX9K (EN 40050-9) | -35 to +70°C (-31 to +158°F) | 1 pieces | 45g | EAC |
| 28401.0-04 | M40 x 1.5 | plastic, light grey | IP66 (EN 60529) / IPX9K (EN 40050-9) | -35 to +70°C (-31 to +158°F) | 100 pieces | 4.5kg (45g/piece) | EAC |
| 28405.0-00 | M40 x 1.5 | plastic according to UL94 V-0, light grey; weather proof and UV light resistant according to UL746C (f1) | IP66 (EN 60529) / IPX9K (EN 40050-9) | -45 to +70°C (-49 to +158°F) | 100 pieces |
90g |
EAC |
| 28406.0-00 | M12 x 1.5 | plastic according to UL94 V-0, light grey; weather proof and UV light resistant according to UL746C (f1) | IP68 (EN 60529) | -40 to +70°C (-40 to +158°F) | 2 pieces | 4g (2g/piece) | EAC |
1at a pressure difference of min. 70 mbar

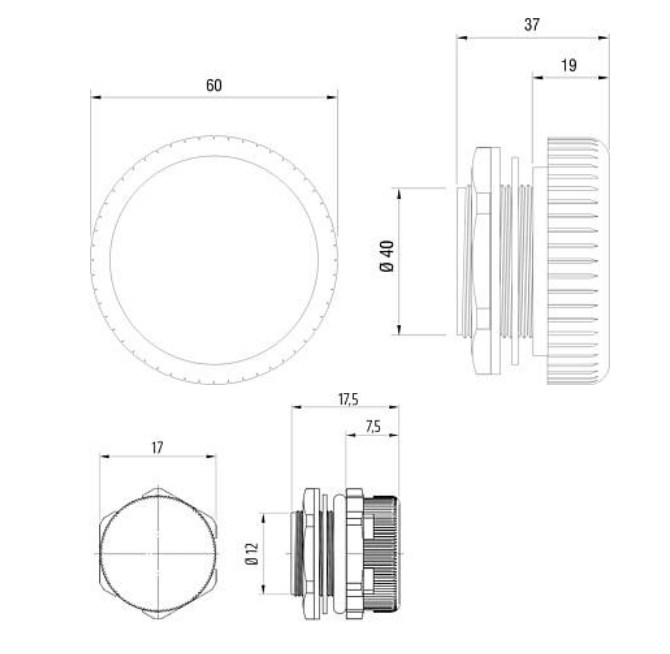

TECHNICAL DRAWING
