通气减压阀 DA 284 IP66(不锈钢)

产品名称:

通气减压阀 DA 284 IP66(不锈钢)

产品简介:

Make cut-out Ø 40.5+0,5mm in enclosure wall and mount pressure compensation device with nut. Please make sure that the sealing gasket is put in place on the outer side panel of the enclosure. For opti

详细信息

TECHNICAL DATA

Mounting thread M40 x 1.5 with nut
Torque 5Nm
Depth in enclosure approx. 9mm
Sealing sealing gasket NBR
Filter

waterproof membrane

Air permeability 1200l/h at a pressure difference of min. 70mbar
Dimensions Ø 58 x 31mm
Fitting position variable
Operating/Storage temperature -45 to +80°C (-49 to +176°F)
Approvals VDE

Installation

Make cut-out Ø 40.5+0,5mm in enclosure wall and mount pressure compensation device with nut. Please make sure that the sealing gasket is put in place on the outer side panel of the enclosure. For optimal pressure compensation we recommend to use two devices on opposite sides towards the top of the enclosure.

Art. No Stainless steel Protection type 1 packing unit Weight (approx.)
28401.0-00 V2A(DIN 1.4301 / AISI 304)1 IP66 (EN 60529) / IPX9K (EN 40050-9) 1 0.2kg
28401.0-02 V4A (DIN 1.4404 / AISI 316L) IP66 (EN 60529) / IPX9K (EN 40050-9) 1 0.2kg

1V2A is not sea waterproof

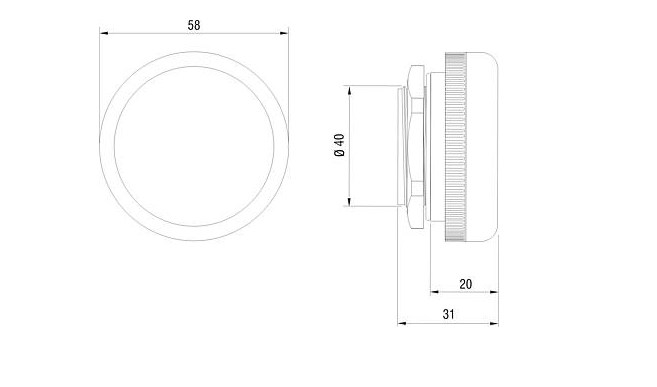

TECHNICAL DRAWING
