通气减压阀 DA 084

产品名称:

通气减压阀 DA 084

产品简介:

Make cut-out Ø 37⁺¹mm in enclosure wall and mount pressure compensation device with nut. Please make sure that the sealing gasket is put in place on the outer side panel of the enclosure. For optimal

详细信息

TECHNICAL DETAILS

DOWNLOAD PDF

Mounting PG 29 thread with union nut
Torque 5Nm
Material plastic according to UL94 V-0, light grey weather proof and UV light resistant according to UL746C (f1)
Sealing sealing gasket NBR
Air interface

approx. 1.5cm²

Dimensions Ø 60.5 x 30 mm
Fitting position vertical¹
Operating/Storage temperature -45 to +70°C (-49 to +158°F)
Approvals VDE

¹ Protection type is restricted to IP54 if fitting position of DA 084 is not vertical.

Installation

Make cut-out Ø 37⁺¹mm in enclosure wall and mount pressure compensation device with nut. Please make sure that the sealing gasket is put in place on the outer side panel of the enclosure. For optimal pressure compensation we recommend to use two devices on opposite sides towards the top of the enclosure.

Art. No Protection type 1 packing unit Weight (approx.)
08400.0-03 IP55 2 62g

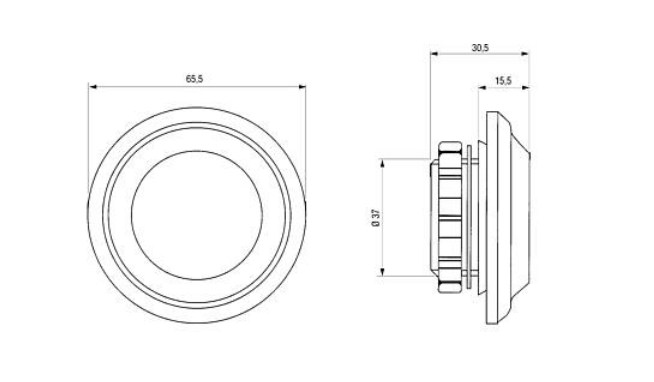

TECHNICAL DRAWING
