半导体加热器RCE016 5W-9W
Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
TECHNICAL DETAILS
| Operating voltage | 120 - 240V AC/DC1(min. 110V, max. 265V) |
| Heating element | PTC resistor - temperature limiting |
| Heater body | aluminium |
| Mounting | see Accessories |
| Fitting position | vertical |
| Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
| Operating/Storage humidty | max. 90% RH (non-condensing) |
| Protection type/Protection class | IP54 / II (double insulated) |
|
Approvals |
VDE, UL File No. E150057 (according to UL 508A, NITW File on request), EAC |
| Note | other voltages on request |
1 Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
| Art. No. | Heating capacity² | Inrush current max. | Recommended pre-fuse T (time-delay) | Surface temperature (approx.) | Connection | Weight (approx.) |
| 01622.0-00 | 5W | 2.0A | 2A | +165°C | 2 x AWG 22 stranded wire | 20g |
| 01623.0-00 | 9W | 2.5A | 4A | +175°C | 2 x AWG 22 stranded wire | 20g |
2 at +20°C (+68°F) ambient temperature

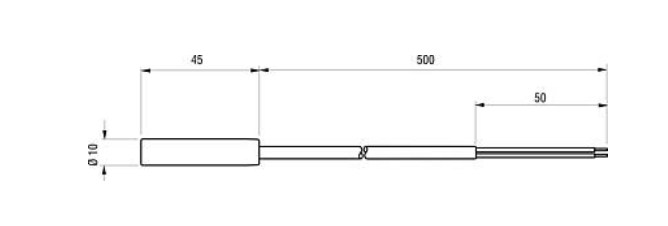

TECHNICAL DRAWING
Small Semiconductor Heater RCE 016 Series
