半导体加热器CS060 50W-100W

产品名称:

半导体加热器CS060 50W-100W

产品简介:

TECHNICAL DATAOperating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

详细信息

TECHNICAL DETAILS

Operating voltage 120 - 240V AC/DC¹ (min. 110V, max. 265V)
Heating element PTC resistor - temperature limiting
Surface temperature < +80°C (+176°F), except upper protective grille
Connection 4-pole terminal 2.5mm², torque 0.8Nm max.
Casing plastic according to UL94 V-0, black
Mounting clip for 35mm DIN rail, EN 60715
Fitting position vertical airflow (air outlet up, connection on bottom)
Operating/Storage temperature -45 to +70°C (-49 to +158°F)
Operating/Storage humidty max. 90% RH (non-condensing)
Protection type/Protection class IP20 / II (double insulated)
Approvals VDE, UL File No. E150057, EAC
Note other voltages on request

¹ Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

Art. No. Heating capacity Inrush current (max.) Recommended pre-fuse T (time-delay) Air outlet temperature³ Dimensions Weight (approx.)
06000.0-00 50W 2.5A 4.0A +86°C (+186.8°F) 110 x 60 x 90mm 0.3KG
06010.0-00 100W 4.5A 8.0A +120°C (+248°F) 110 x 60 x 90mm 0.3KG
06020.0-00 150W 8A 10.0A +145°C (+293°F) 150 x 60 x 90mm 0.5KG

² ambient temperature - see Heating capacity / Ambient temperature diagram; ³ measured 50mm above protective grille

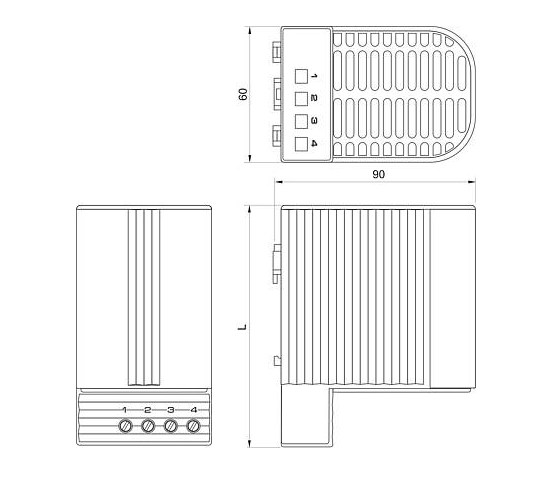

TECHNICAL DRAWING
